Electric Cycles
Built for electric bicycles with dependable power output, supporting longer travel distances, efficient energy usage, and smooth performance across various riding conditions.

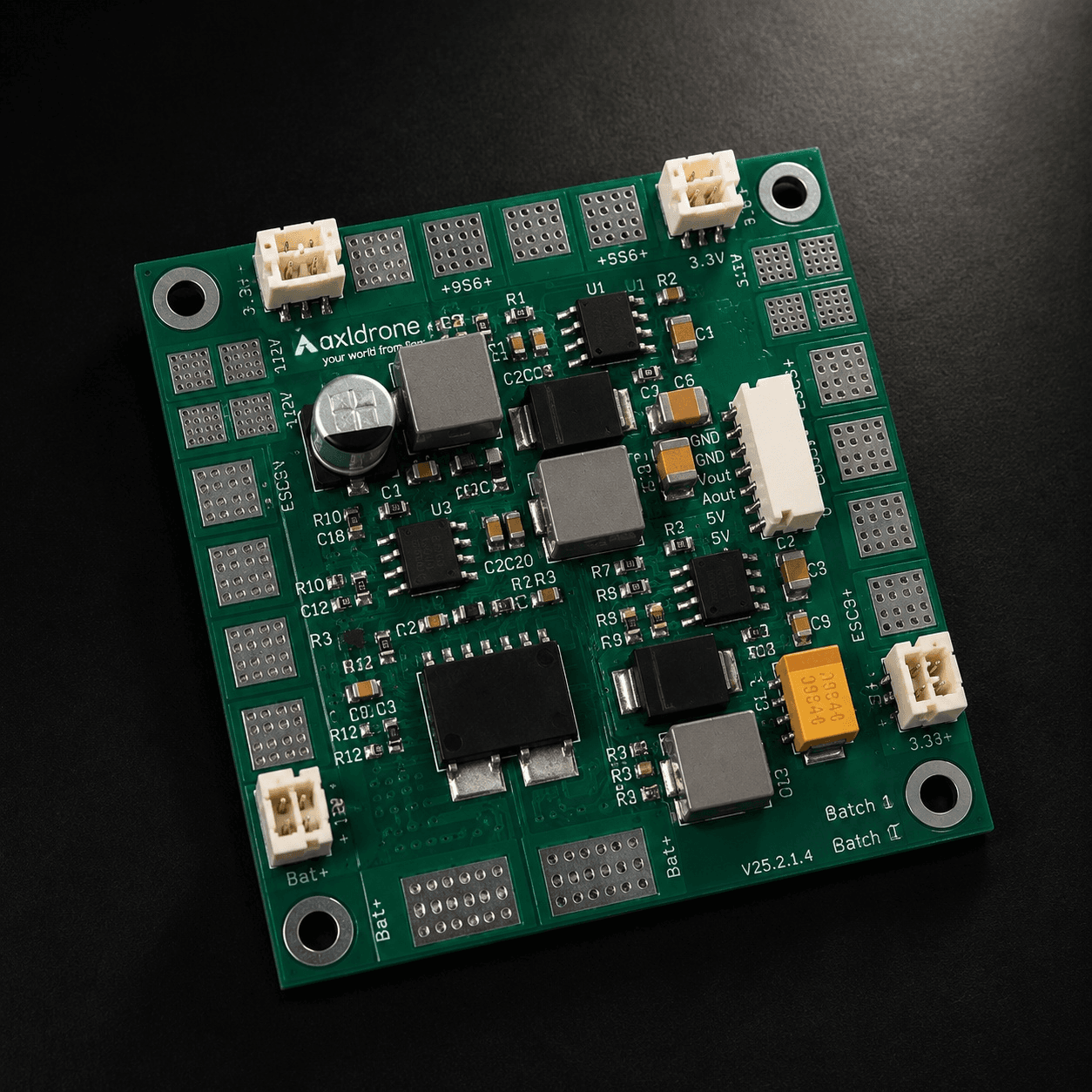

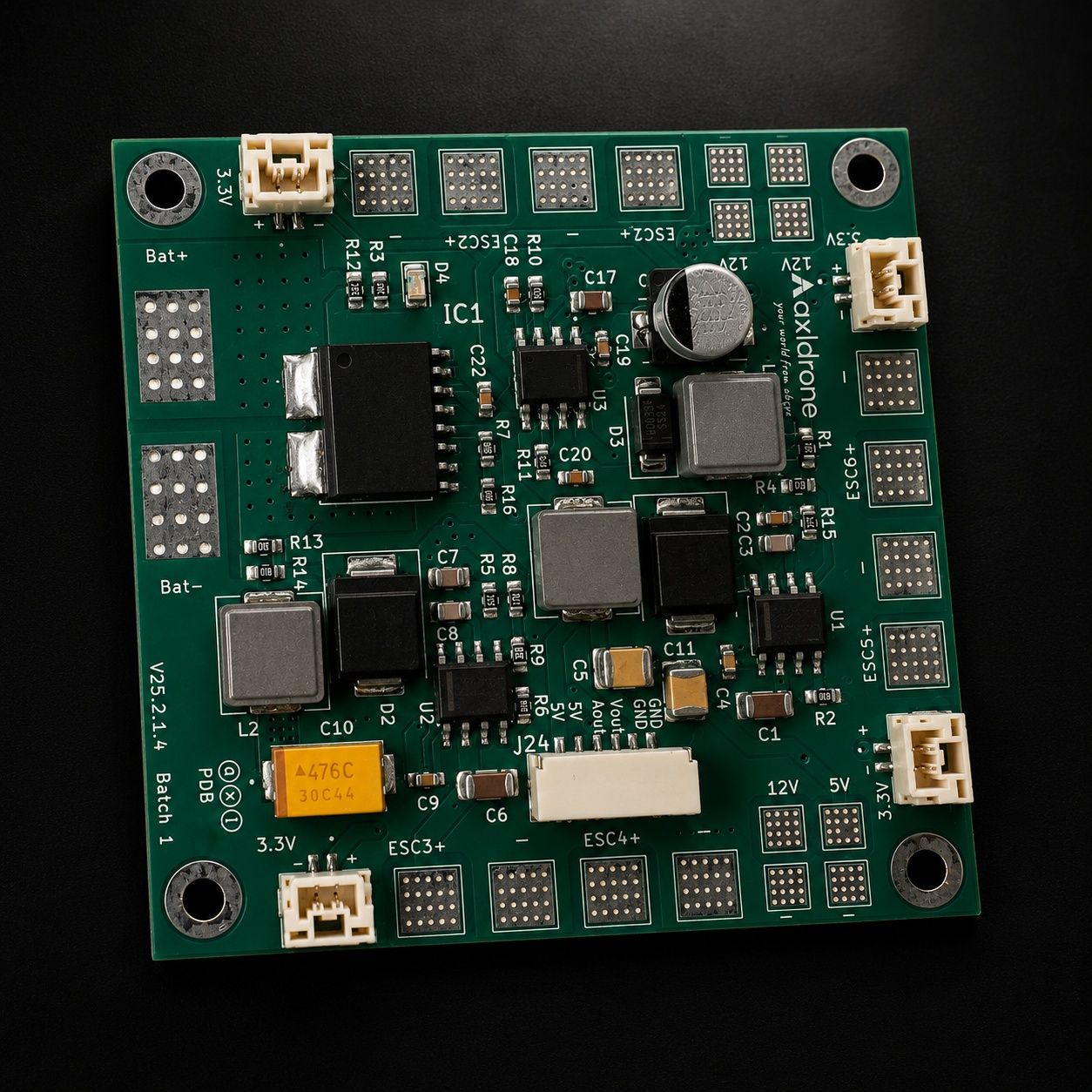

PDB 80A
Power Distribution Built for Performance
The PDB 80A is designed to simplify your power architecture while delivering rock-solid performance for drones, robotics, rovers, electric cycles, electric skateboards, etc. Engineered for durability and tight builds, it combines robust power distribution with precise telemetry and regu lated outputs.
Compatible Up to 6 ESCs
Input Voltage Range Up to 30V (6S)
Integrated Hall-effect current sensor
Integrated Regulators
Plug-and-Play Installation
80A Continuous Current Support
The PDB 80A delivers reliable power distribution, precise telemetry, and regulated outputs in a compact design, making it ideal for drones, robotics, rovers, and other high-performance platforms.
Applications
Electric Skating Board
Designed for electric skateboards with stable power delivery and efficient energy management, ensuring smooth acceleration, improved control, and reliable performance during high-speed rides.
Rovers
Engineered for robotic and autonomous rover systems, delivering stable power distribution for navigation, sensors, communication modules, and demanding field operations.
Quadcopters & Hexacopters
Optimized for multi-rotor drone platforms, providing reliable power management and consistent performance for surveillance, mapping, inspections, and aerial missions.
Specifications
PDB 80A
General
- Board Dimensions (L x W x H)54 mm × 56 mm × 7.5 mm
- Mounting HoleM2.5
- Weight18 g
- PCB MaterialHigh-density FR4
- Input voltageUp to 30 V (6S max)
- Maximum Current Handling80 A
- Output Channels6
- Current per Output Pad40A Continuous (Max 50A)
- SensorsIntegrated Hall-effect current sensor and voltage sensor
- BEC Output5 V / 4 A, 12 V / 4 A, 3.3 V / 1.5 A
- Power SwitchNo
- ConnectorsJST 6-pin power connector (5V), 4 x 3.3 V connectors
General (With Connector)
- Board Dimensions (L x W x H)62 mm x 54 mm x 11 mm
- Mounting HoleM2.5
- PCB MaterialHigh-density FR4
- Input voltageUp to 30 V (6S max)
- Maximum Current Handling80 A
- Output Channels4
- Current per Output Pad30A Continuous (Max 40A)
- SensorsIntegrated Hall-effect current sensor and voltage sensor
- BEC Output5 V / 4 A, 12 V / 4 A, 3.3 V / 1.5 A
- Power SwitchYes
- ConnectorsJST 6-pin power connector (5V), 4 x 3.3 V connectors, 4 XT30
Learn More About PDB 80A?
