Electric Cycles
Built for electric bicycles with dependable power output, supporting longer travel distances, efficient energy usage, and smooth performance across various riding conditions.

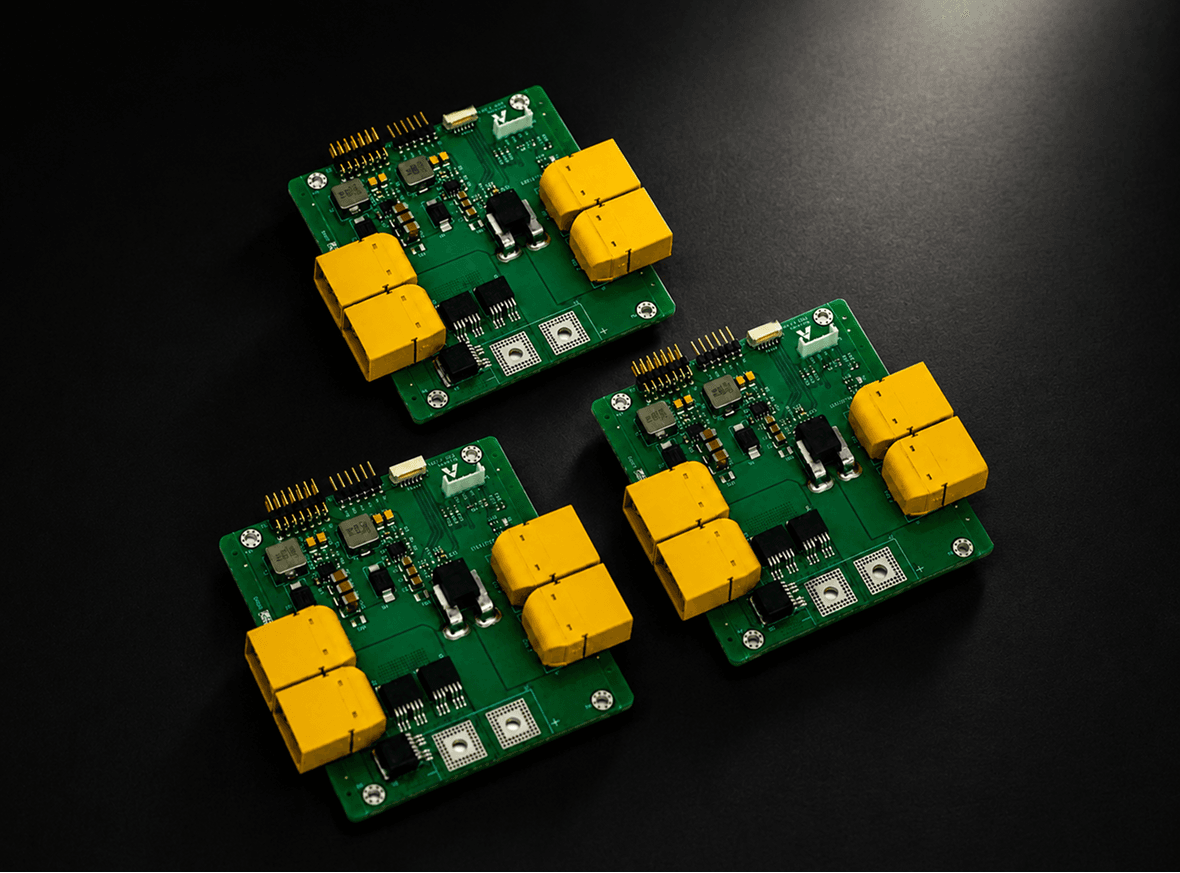

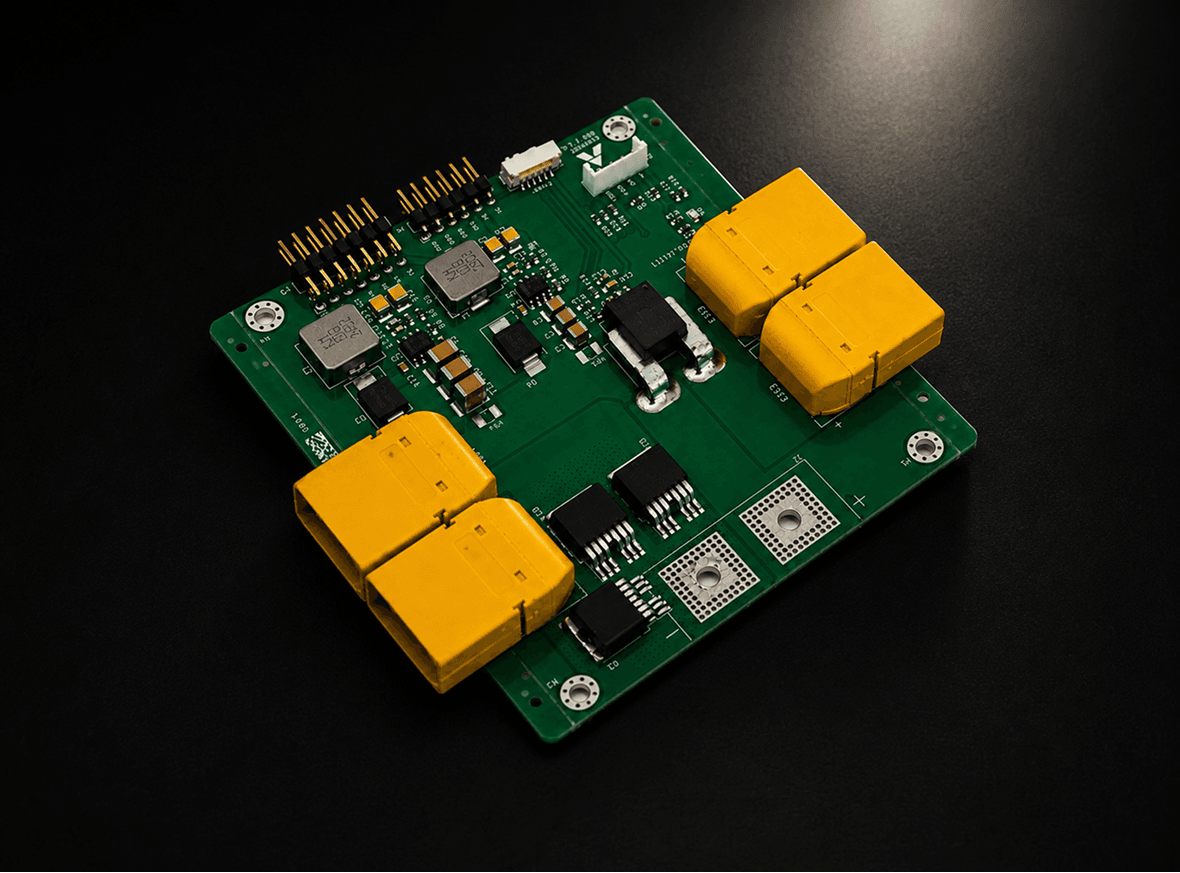

PDB 200A
Engineered for High Current, Designed for High Confidence.
axl PDB 200A is engineered to meet the precision power distribution needs of advanced electronic systems. Designed for a 60V input, it delivers stable and regulated 12V and 5V outputs for critical subsystems. The board features four XT90 connectors to support high-current power transfer (15–60V) from battery to ESCs or motors, handling loads of up to 200A. Integrated current and voltage sensors provide real-time monitoring, supporting measurements up to 200A and 60V, ensuring reliable performance and system protection in demanding applications.
Four XT90 Outputs
Hall‑Effect Current & Voltage Sensors
Integrated Regulators
200A Continuous Current Capacity
Input Voltage Range Up to 60V (14S)
Anti‑Spark Soft‑Switch
The axl PDB 200A is a high-performance power distribution board designed for advanced systems, delivering stable power output, up to 200A current handling, and real-time monitoring for reliable operation in demanding applications.
Applications
Drones
Designed for advanced drone systems, delivering stable power distribution for smooth operation, extended flight endurance, and reliable performance in demanding aerial missions.
VTOL
Combining vertical takeoff and landing capabilities with efficient forward flight, VTOL platforms deliver operational flexibility and enhanced performance for complex and long-distance UAV missions.
Specifications
PDB 200A
General
- Board Dimensions (L x W x H)105 × 105 × 12 mm
- Mounting HoleM3
- Weight90g
- PCB MaterialHigh-density FR4
- Input voltage20–60 V (14S max)
- Maximum Current Handling200 A
- Output Channels4
- Current per Output PadUp to 50 A continuous (Max 100A)
- SensorsHall-Effect Current and Voltage Sensor
- BEC Output12 V / 5 A and 5 V / 5 A
- Power SwitchMOSFET Electronic Soft Switch
- Connectors1 × SM06B-GHS-TB, P14 2.5 mm header pin, P6 2.5 mm header pin, and 4 × XT90
