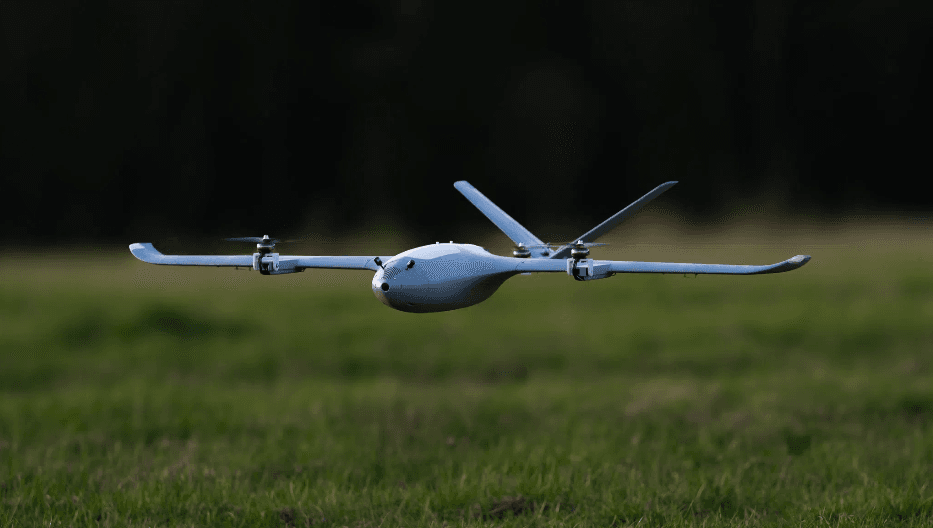

Fixed Wing UAV
Built for extended flight endurance and efficient long-range coverage, fixed wing UAV are ideal for BVLOS operations, large-area mapping, surveying, and continuous monitoring missions.

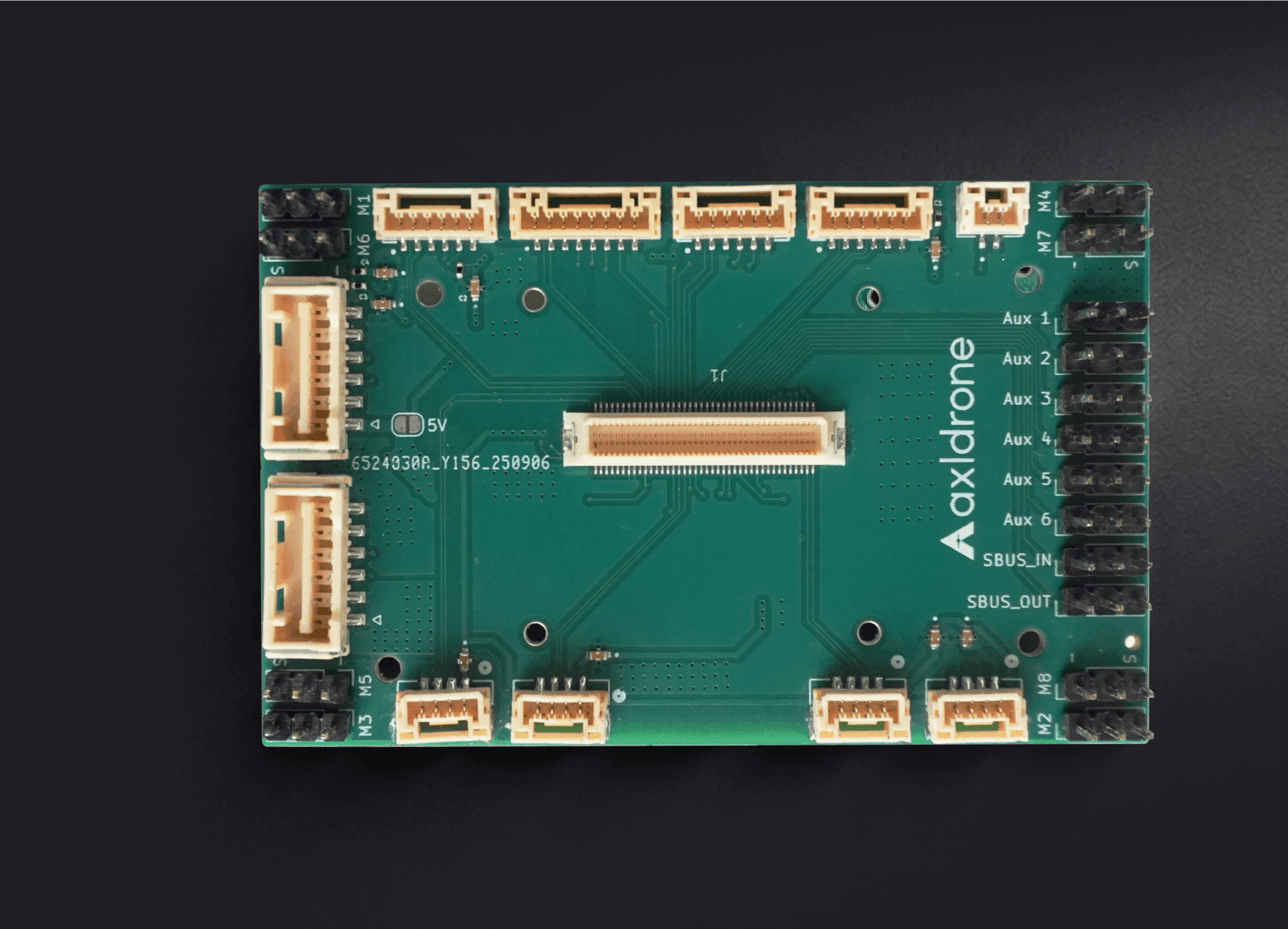

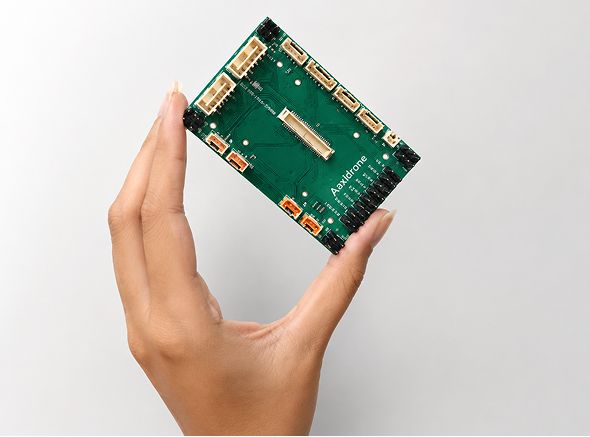

axl Carrier Board for Advanced UAV Connectivity

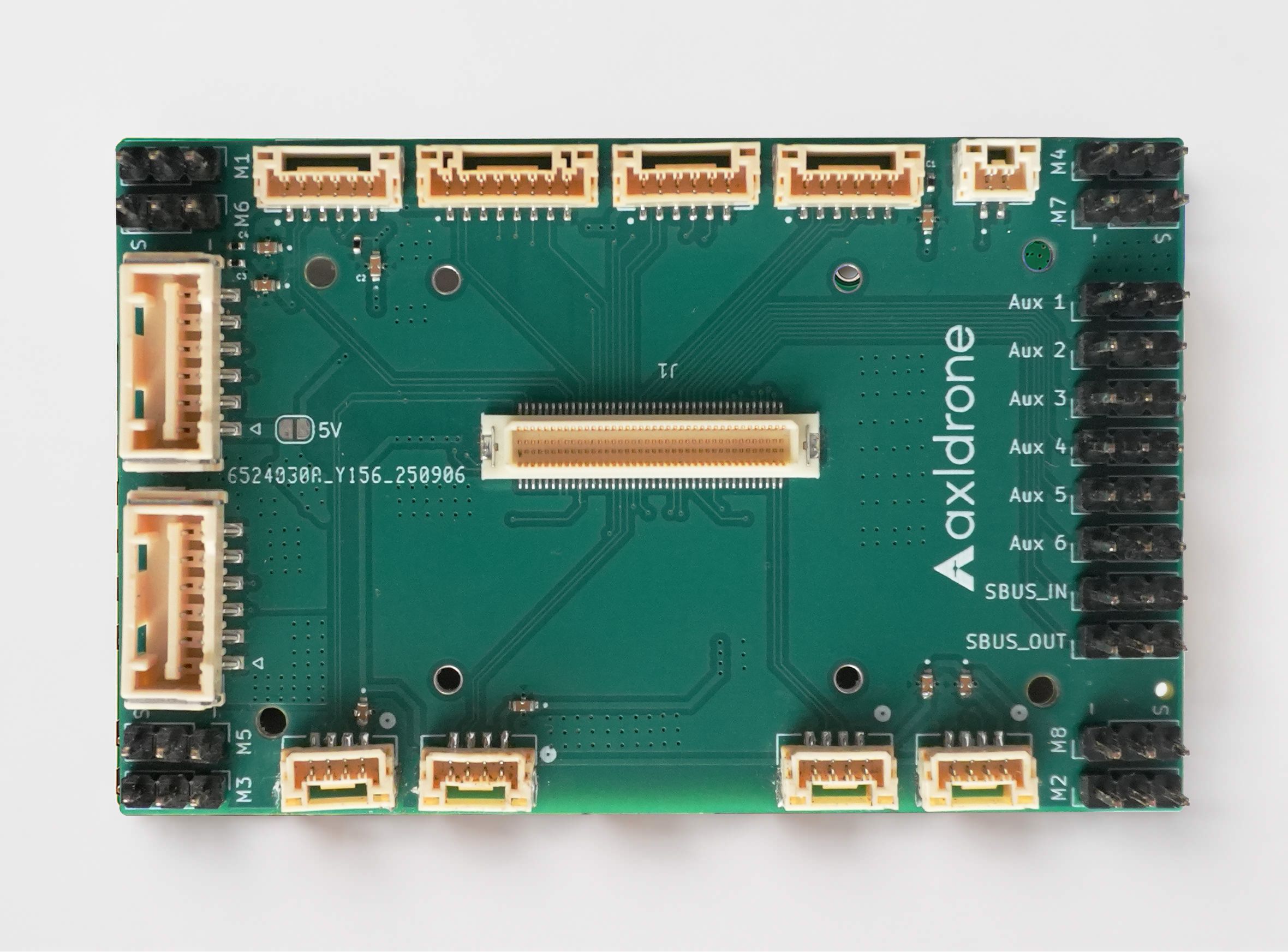

Powering Next-Generation UAV Systems
Designed for next-generation drone platforms, the axl Carrier Board delivers reliable power management, seamless communication, and flexible peripheral integration. Built for the Cube ecosystem, its compact and lightweight design ensures professional-grade performance, durability, and efficient connectivity for advanced UAV applications.
Optimized Design
Dual Redundant Power Inputs for reliable operation
Multiple Connectivity Options
Motor PWM Distribution & Servo Outputs for flexible control
axl Carrier Board is built for the Cube ecosystem, delivering reliable power, seamless communication, and flexible peripheral integration. Compact and lightweight, it provides professional-grade connectivity for advanced UAV platforms.
Applications

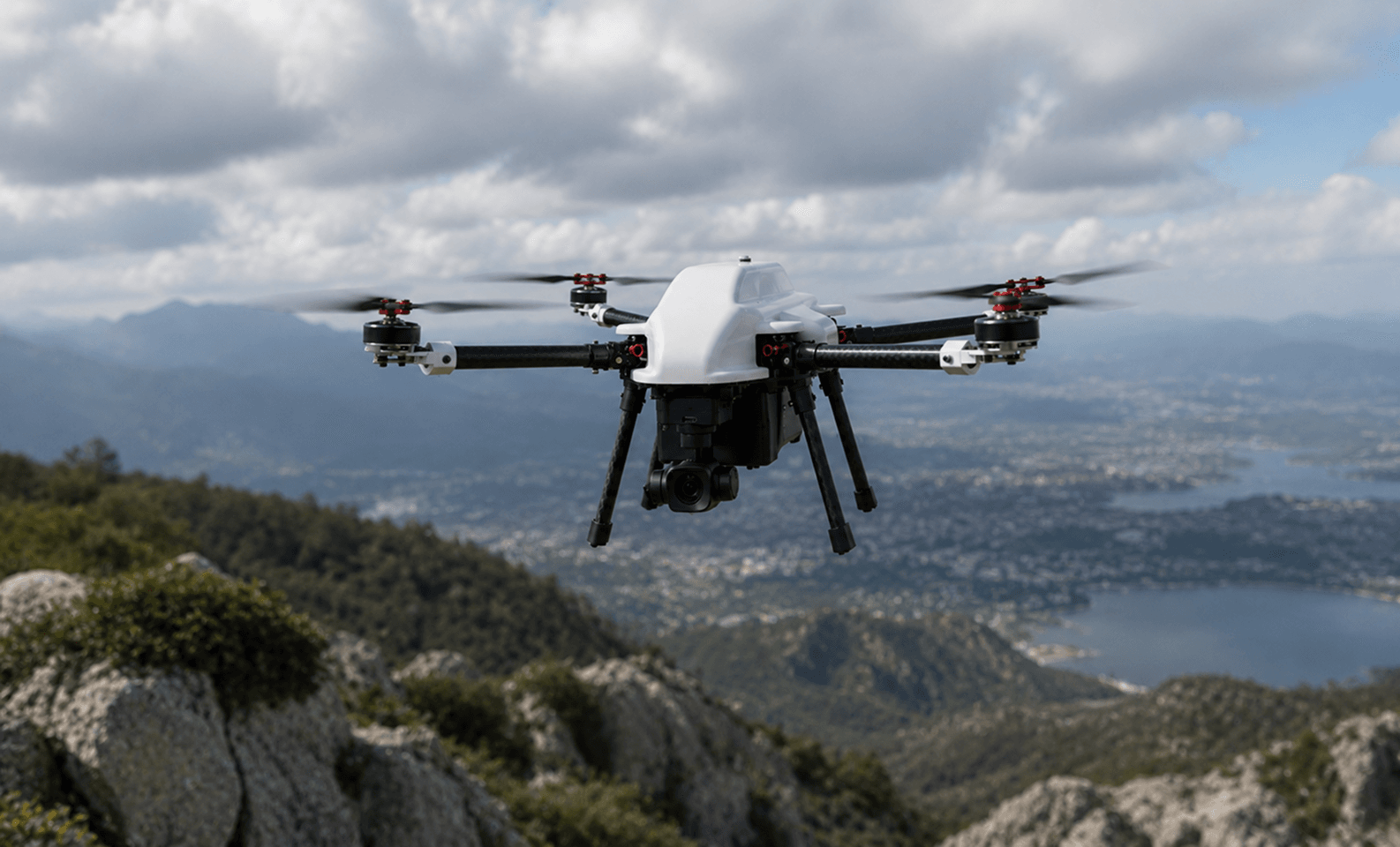

Multirotor Drones
Designed for stable flight performance and precise maneuverability, multirotor drones support a wide range of applications including surveillance, inspection, mapping, monitoring, and mission-critical aerial operations.

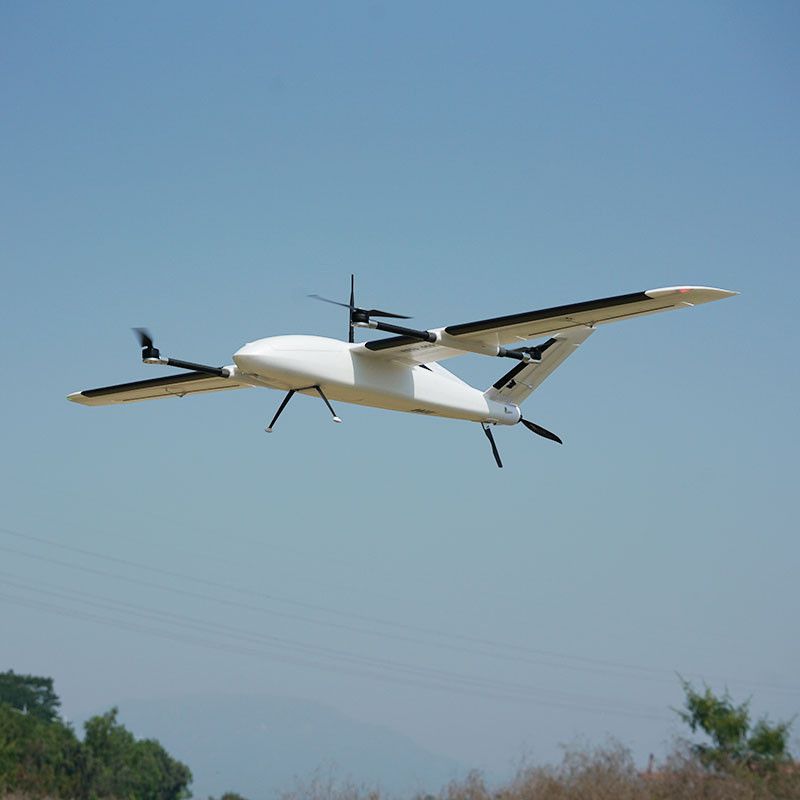

VTOL
Combining vertical takeoff and landing capabilities with efficient forward flight, VTOL platforms deliver operational flexibility and enhanced performance for complex and long-distance UAV missions.
Specifications
General
- Dimensions (L × W × H)80 mm × 50 mm × 12 mm
- AUX / Servo Outputs6 × Servo outputs (shared AUX rail, external power capable)
- Weight21 g
- RC InputSBus In / Out (2.54 mm standard RC input/output)
- Power Input5 V
- Power Ports2 × Power inputs
- PWM Outputs8 × Motor outputs (M1–M8)
- UART / Serial Ports2 × UART (SERIAL1, SERIAL2)
- Modelaxl Carrier Board
- I2C Ports1 × I2C
- CAN Bus1 × CAN1
- GPS Ports2 × GPS (GPS1, GPS2)
- Companion Computer Interface1 × SBC Port
- USB1 (For firmware flashing & configuration)
- Buzzer Port1
- Cube InterfaceDedicated slot for Cube Orange autopilot
- Operating Temperature–10 °C to +80 °C
- Firmware SupportPX4 / ArduPilot (Cube ecosystem)
