Marine Vessel Tracking and Communications
Deliver accurate navigation and stable positioning across marine environments, supporting offshore operations, vessel tracking, and long-distance communication.

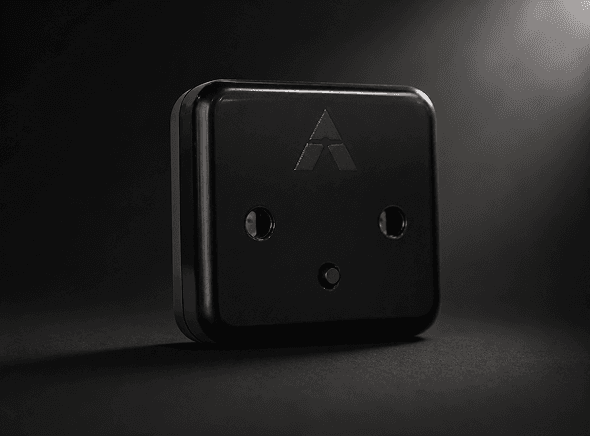

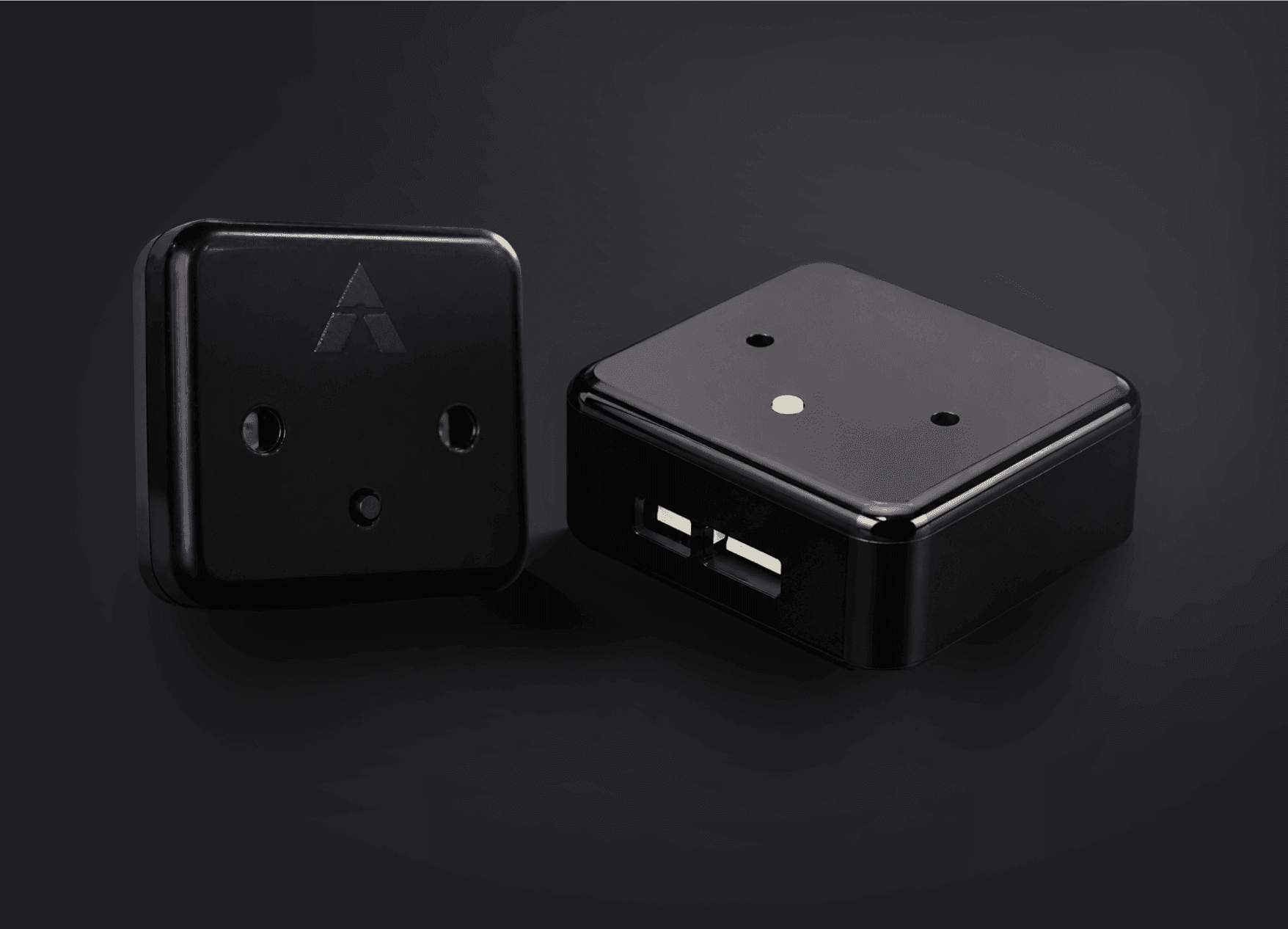

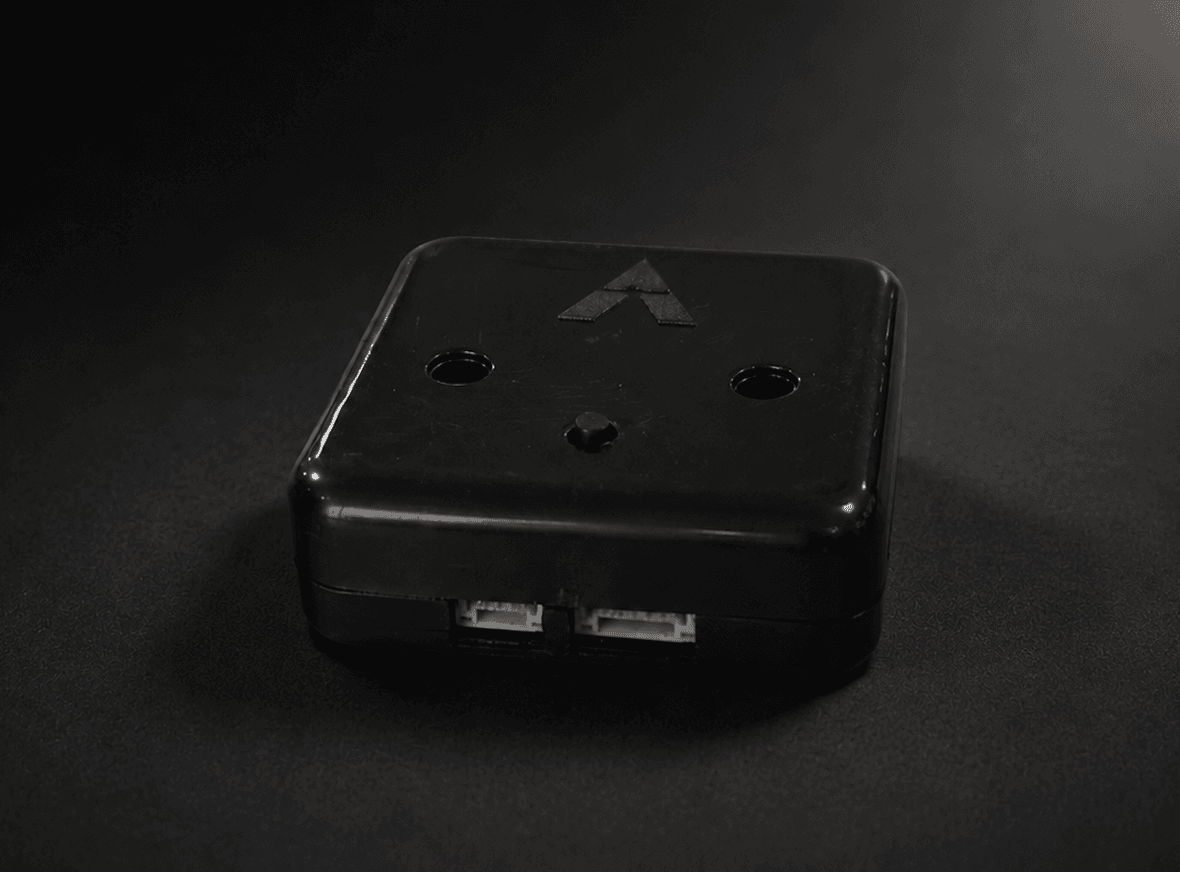

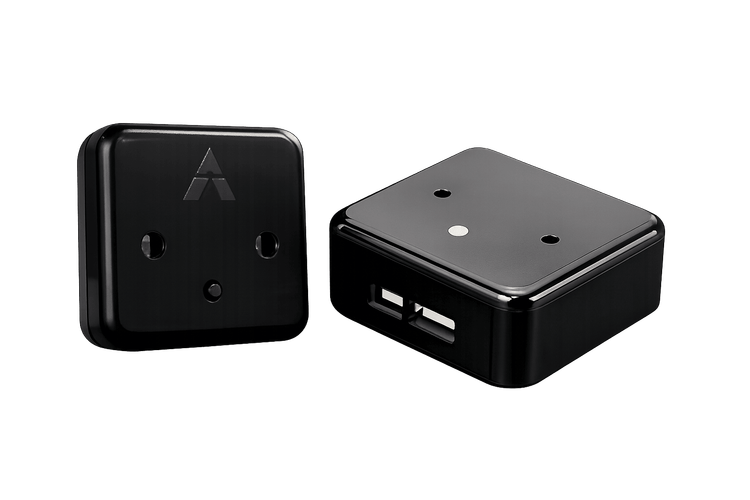

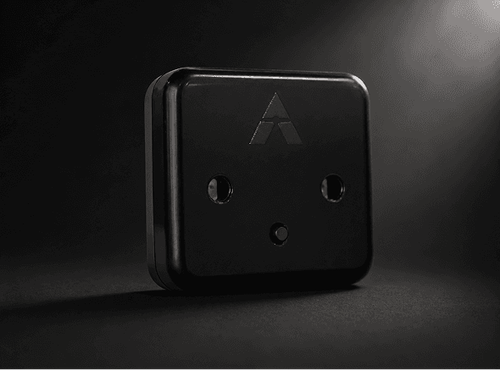

axl Orbit Precision Navigation System
Built for High-Precision Operations
Delivering ultra-precise positioning with pinpoint-level accuracy, axl Orbit combines multi-constellation Global Navigation Satellite System (GNSS) reception, advanced anti-spoofing and anti-jamming protection, and exceptional heading precision. Built for reliable mission performance, it ensures maximum positioning availability through simultaneous multi-satellite connectivity for stable and accurate navigation in demanding environments.
Multi-GNSS Capability
Highly Accurate Integrated Compass
Maximum 32 Satellite Connectivity
Optimized for Critical Applications
Superior Accuracy
The axl Orbit GPS provides ultra-precise positioning with up to 1.5-meter accuracy, maximum position availability through 4 concurrent GNSS receptions, advanced spoofing and jamming detection, and exceptional heading accuracy of 0.3 degrees.
Applications
Vehicle Fleet Management
Enable intelligent vehicle tracking, route optimization, and real-time location monitoring with reliable connectivity designed for efficient mobility and fleet management operations.
Drones & Surveillance Systems
Support advanced aerial missions with real-time tracking, long-range communication, and precision monitoring for surveillance, mapping, and critical operations.
Specifications
General
- Horizontal Accuracy1.5 m
- Heading Accuracy0.3deg
- Maximum Altitude80,000m
- SensitivityTracking and nav. -165 dBm Reacquisition -158 dBm Col
- Current Consumption200 mA
- Input Voltage4.7-5.2V
- Port TypeJST-GH-06 & JST GH 04
- Operating Temperature-40 to 85 oC
- GNSS SystemGPS, GLONASS, Galileo, and BeiDou
- Satellite BandsGPS L1 C/A GLONASS L1OF BeiDou B1C Galileo E1B/C
- Navigation Update RateMax 5Hz (Four GNSS)
- Diameter47.2 mm
Learn More About axl Orbit?
